Anti-angiogenic therapy in head and neck squamous cell carcinoma - current limitations and future directions

Views: 150 |  Downloads: 19 |  Cited:  0
Vessel Plus 2024;8:25.
10.20517/2574-1209.2023.73 |  © The Author(s) 2024.
Author Information
Article Notes
Cite This Article


Angiogenesis, the formation of new blood vessels, plays a crucial role in the progression and metastasis of various cancers, including head and neck squamous cell carcinoma (HNSCC). HNSCCs are characterized by altered levels of angiogenesis-related factors, including the overexpression of pro-angiogenic factors such as vascular endothelial growth factor (VEGF) and platelet-derived growth factor (PDGF), as well as the dysregulation of angiogenesis inhibitors. Together, these factors drive the formation of new blood vessels within the tumor microenvironment and are considered therapeutic targets in HNSCC. Although preclinical studies are promising, challenges have emerged in the clinical use of anti-angiogenic agents in the clinic, including treatment-related toxicities and the development of resistance to therapy. There is an unmet need for further research to elucidate the molecular pathways involved in HNSCC angiogenesis, identify novel therapeutic targets, and discover predictive biomarkers to improve patient selection.


Head and neck squamous cell carcinoma, HNSCC, oral squamous cell carcinoma, OSCC, anti-angiogenic therapy, tumor angiogenesis


Originating from the epithelial cells lining the upper aerodigestive tract, head and neck squamous cell carcinoma (HNSCC) is the sixth most common cancer worldwide[1-4]. HNSCC is a complex and multifactorial disease that accounts for approximately 890,000 new cases and 450,000 deaths annually[3,5]. The clinical appearance of the disease is often a painless lump or ulcer, which can be accompanied by difficulties in swallowing, hoarseness, or persistent cough[6]. Various sites can be affected in the head and neck region, including the oral cavity, pharynx, larynx, nasal cavity, and paranasal sinuses[1,4]. Therefore, the associated symptoms are heterogeneous and depend on the anatomical site as well as the etiology of the tumor[1]. The main risk factors for HNSCC include tobacco and alcohol abuse, betel nut chewing, and exposure to environmental pollutants[1,7]. Especially the combination of alcohol and tobacco consumption potentiates the risk of malignant development 35-fold in a synergistic manner[8]. Additionally, as a biologically distinct subgroup, infections with human papillomavirus (HPV) or Epstein-Barr virus (EBV) are significant risk factors[1,9].

Diagnosis of HNSCC requires clinical examination, including a detailed history and physical examination of the head and neck[10,11]. Further, to confirm the suspected clinical diagnosis, a histopathological work-up of a tumor biopsy is necessary, either obtained by surgical resection or by fine needle aspiration cytology[1,6,10,12]. Imaging studies such as computed tomography (CT), magnetic resonance imaging (MRI), and positron emission tomography (PET) are part of the staging process, determining the extent and invasiveness of the tumor as well as detecting metastasis and aiding in the estimation of the prognosis[5,6].

Treatment options for HNSCC depend on the stage and location of the tumor, as well as the patient's overall health[1]. The primary treatment options include surgery, radiation therapy, chemotherapy, and targeted therapy. Single-modality therapy is the preferred treatment for early-stage HNSCC with an overall better prognosis, while a multimodal treatment is typically used in advanced-stage disease[6]. A promising new approach to the treatment of HNSCC is targeted therapy, inter alia involving immunotherapy to target immune checkpoints or the tumor microenvironment, including the tumor vasculature. These targeted therapies were particularly effective in patients with a positive HPV status (HPV+) or in patients with recurrent or metastatic HNSCCs with defined molecular characteristics, including upregulation of immune checkpoint inhibitors and tumor-associated antigens or the presence of cancer driver mutations[1,9,13].

Despite those treatment advances, the prognosis for HNSCCs remains poor, with a five-year survival rate of approximately 60%, and has decreased only slightly over the last decades[1,7]. Patients with early-stage disease have a better prognosis than those with advanced-stage disease, and patients with HPV+ tumors have a better prognosis than those with HPV-negative (HPV-) tumors[14]. Prevention and early detection are crucial for improving the prognosis of HNSCC, as the survival rate declines rapidly with the increased tumor stage. Strategies for prevention include avoiding tobacco and alcohol use, practicing good oral hygiene, getting vaccinated against HPV, and avoiding exposure to environmental carcinogens[1]. Still, new treatment modalities are continuously being investigated and promising results from targeted therapy emphasize the potential of reducing current limitations in HNSCC therapy. Here, we will consider the potential of targeted therapies to improve the current survival rates of HNSCC with special emphasis on approaches targeting the tumor vasculature.


Progressing tumors, analogous to normal tissues, require sustenance in the form of nutrients and oxygen, as well as the ability to evacuate metabolic wastes and carbon dioxide for sufficient growth. Therefore, an increased contribution and drainage of blood are necessary, which are met by the initiation and extension of tumor-associated neovasculature[15]. This induction of angiogenesis is one of the “Hallmarks of Cancer”, defined by Hanahan and Weinberg, probably a rate-limiting step in the development of solid tumors and is initiated within the hypoxic tumor microenvironment[15,16]. Hereby, tumor-associated hypoxia (O2 < 14 mmHg or 2%) orchestrates the broad pro-angiogenic reprogramming and is closely linked to decreased immune surveillance during tumor progression[17]. Therefore, one approach to attenuating the progression of HNSCC and other solid tumors is targeting tumor angiogenesis. Under physiological conditions, the process of angiogenesis is mainly guided by complex hemodynamic parameters, such as pressure, vorticity, and shear stress, while mainly neoplastic growth and pro-angiogenic factors drive angiogenesis under pathological conditions[18]. It is important to distinguish angiogenesis from vasculogenesis, the de novo formation of blood vessels during embryogenic development, where angioblasts differentiate into flattened endothelial cells (ECs) in blood islands and through sprouting and anastomoses, ultimately forming primordial vascular plexus[19]. Various mechanisms of angiogenesis have been identified, including sprouting angiogenesis, intussusceptive angiogenesis, coalescent angiogenesis, vessel co-option, and vasculogenic mimicry, which are particularly relevant in tumor angiogenesis [Figure 1][18].

Anti-angiogenic therapy in head and neck squamous cell carcinoma - current limitations and future directions

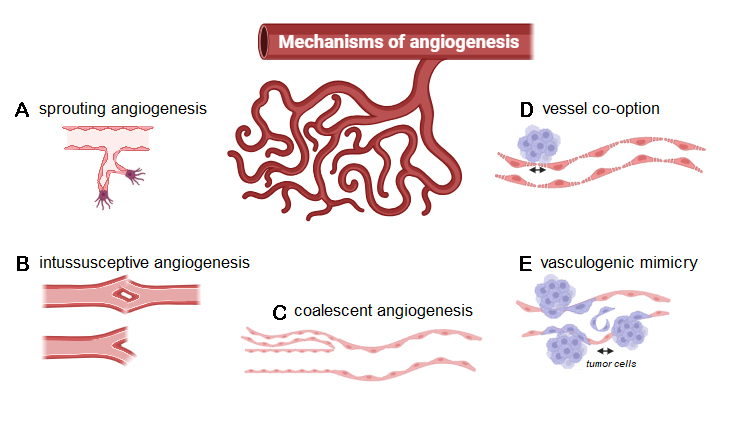

Figure 1. Molecular mechanisms of angiogenesis: (A) sprouting angiogenesis, (B) intussusceptive angiogenesis, (C) coalescent angiogenesis, (D) vessel co-option, and (E) vasculogenic mimicry.

Sprouting angiogenesis refers to the mechanism of capillary vessel growth out of pre-existing ones through degradation of the extracellular matrix and the basement membrane surrounding the ECs. This subsequently allows ECs to invade and disintegrate the surrounding matrix, proliferate, form new immature blood vessels, and, therefore, develop a more extensive network for the nourishment of the growing tumor[20]. Vascular endothelial growth factor (VEGF) is a widely expressed angiogenic growth factor and plays a crucial role in sprouting angiogenesis, as well as angiogenesis in general, by inducing EC proliferation and migration, mainly through filopodia tip cell formation[21]. Hypoxia also represents a potent inducer of sprouting angiogenesis and reveals its potential for tumor promotion as the unbridled growth of cancer causes ubiquitous hypoxic conditions[22]. Besides sprouting angiogenesis, intussusceptive angiogenesis is also considered a VEGF-dependent mechanism, where angiogenesis is achieved by splitting a capillary into two independent microvessels[23]. Observed during growth and vascular remodeling of predominantly venous or capillary vascular networks, intussusceptive angiogenesis is a well-defined process of reshaping pre-existing networks by bisecting the lumen through an intussusceptive pillar. It has been reported that circulating progenitor cells are then integrated into the forming gaps in the vessel walls, consequently resulting in the formation of trans-vascular pillars without endothelial proliferation[22,24]. Interestingly, intussusceptive angiogenesis has been identified as a potential mechanism for resistance to anti-angiogenic drugs. It is considered compensatory angiogenesis in this regard, as the energy requirements are minor, and the process is fairly quick. Additionally, intussusceptive angiogenesis can build a vascular network specifically tailored to the local geometric and hemodynamic prerequisites, aggravating cancer growth and aggressiveness[24].

Further, described as the reverse of intussusception, coalescent angiogenesis describes remodeling an initial, hemodynamically ineffective vascular mesh structure into a hierarchical tree structure, providing efficient convective flow. Herein, preferential flow pathways evolve within initially isotropic capillary meshes, progressively enlarging through the coalescence of capillaries and elimination of internal tissue pillars, resulting in the regression of less perfused and the strengthening of preferred capillaries[25]. However, coalescent angiogenesis has only been identified in embryonic development. Therefore, it remains to be investigated in future studies whether those mechanisms have any impact on tumor angiogenesis[18].

Regarding the connection between angiogenesis and cancer, vessel co-option and vasculogenic mimicry are particularly important. Although the precise molecular mechanism involved in vessel co-option in cancer remains unclear, it refers to a non-angiogenic process where tumor cells hijack the abluminal surface of blood vessels as lead structures. Through those vascular courses, cancer cells obtain oxygen and nutrients by infiltrating the ambient microenvironment[26]. Vasculogenic mimicry is another type of non-angiogenic growth. Instead of attaching to blood vessels, tumor cells differentiate into EC-like cells and create matrix structures resembling vessels, which are perfused and provide nourishment to hypoxic tumor areas[27].

Despite those mechanisms of angiogenesis used by cancer to generate an abundant number of vessels, tumors are usually hypoxic and nutrient-deprived, leading to the production of even more pro-angiogenic factors and, therefore, creating a self-reinforcing vicious cycle of further tumor angiogenesis[28]. An explanation for this idiosyncrasy has been found in the abnormal structure and subsequent malfunction of tumor vasculature, presenting as leaky, tortuous, dilated, saccular, and having a haphazard pattern of interconnection[29]. Another contributing factor to this hostile milieu of hypoxia and malnutrition is the compression of these already weakened vessels via physical forces exerted by overabundant cells and escaping fluids due to the leakiness of tumor vessels, consequentially raising interstitial pressure[30,31]. This can cause fluctuations in the blood flow, resulting in an erratic distribution of oxygen, nutrients, immune cells, and drugs[31]. Further, high values of microvessel density (MVD), a product of the aforementioned continuous and self-reinforcing tumor angiogenesis, are considered to be an adverse prognostic factor in HNSCC, associated with shorter overall survival (OS) and progression-free survival (PFS), as well as higher rates of metastasis[32,33]. The latter can be explained by the poor architectural integrity of the vasculature, facilitating the invasion of tumor cells into nearby blood or lymphatic vessels. The increased permeability of these vessels and the presence of pro-angiogenic and chemotactic signals are additional mechanisms linking increased tumor angiogenesis to metastasis in HNSCC[34]. The hypoxic tumor microenvironment sustains this process via HIF-1α-dependent activation of immune suppressor cells[35-37], enabling escape from immune surveillance[38], as well as via expression of angiogenic factors by these immunosuppressive cells[39]. Additionally, hypoxia-induced and hypoxia-inducible factor 1 subunit α (HIF-1α)-mediated VEGF release from tumor cells is a strong contributor to immune suppression by preventing cytotoxic T-cell migration[40] and maturation of dendritic cells[41], thus linking angiogenesis to deprivation of immune response and ultimately leading to tumor progression.

Tumor angiogenesis involves a complicated interaction between ECs, cancer cells, immune cells, and the surrounding micro- and macro-environments. Many vascular and endothelial factors are at play, contributing to a complex chain of signaling mechanisms and cascades. All of these factors could serve as potential targets for therapy, complicating the search for the right starting point for anti-angiogenic therapies in HNSCC.


Targeting the VEGF pathway

In an effort to tackle tumor growth at its many routes, several therapeutic options are available specifically for targeting tumor angiogenesis. Four general categories with 14 different US Food and Drug Administration (FDA)-approved anti-angiogenic therapies have been established: ligand-directed antibodies, receptor-directed antibodies, small molecule inhibitors, and immunomodulatory agents[16]. The efficacy of these approaches in HNSCC is presented in Table 1 based on the available data from clinical trials. Similar findings in other malignant entities are summarized in Supplementary Table 1. VEGF was of particular interest in the ligand-directed and receptor-directed categories, as overexpression of VEGF is observed in HNSCC and is linked to worse OS[42,43]. Additionally, preclinical studies exploiting the anti-angiogenic effects of Bevacizumab, a monoclonal antibody targeting VEGF-A, showed enhanced tumor response in combination with radiation, resulting in reduced tumor blood vessel formation and inhibition of tumor growth[44]. Bevacizumab was initially approved by the FDA in 2004 as part of a combinational therapy for metastatic colorectal cancer[45]. Since then, five additional types of solid tumors have been approved for treatment with bevacizumab. However, the FDA has not yet approved anti-angiogenic agents for the treatment of HNSCC, despite the highly vascularized nature of the tissues in which HNSCC arises[46]. Argiris et al. evaluated the addition of bevacizumab to platinum-based chemotherapy in recurrent/metastatic HNSCC in their phase III randomized trial (NCT00588770)[47]. Although the median OS was improved from 11.0 months with chemotherapy alone to 12.6 months with chemotherapy and bevacizumab, those results were not significant (HR: 0.87; 95%CI: 0.70-1.09; P = 0.22). However, a significant increase in response rate, from 24.5% to 35.5% (P = 0.013), and PFS, from 4.3 months to 6.0 months (P = 0.0012), was observed. Those results were encouraging, even though bevacizumab treatment was associated with a significant increase in treatment-related toxicities. Consequently, further trials targeting VEGF were set up. Among others, Yoo et al. combined bevacizumab, erlotinib, a tyrosine kinase inhibitor (TKI) of the epithelial growth factor receptor (EGFR), and concurrent chemoradiation in locally advanced HNSCC (NCT00140556)[48]. Even though an increased risk of osteoradionecrosis was detected, complete response rates were achieved in 96% of patients (95%CI: 82%-100%) and 3-year OS and PFS reached 86% and 82%, respectively (95%CI: 66%-94% and 62%-92%)[49]. Cohen et al. conducted another phase I/II study (NCT00055913) where bevacizumab was combined with erlotinib in patients with recurrent/metastatic HNSCC[50]. Overall, the combination was well-tolerated with a median OS of 7.1 months (95%CI: 5.7-9.0 months) and PFS of 4.1 months (95%CI: 2.8-4.4 months), but the authors also conceded that the objective response of cetuximab/platinum/fluorouracil or other cytotoxic chemotherapy combinations in patients with recurrent or metastatic disease is likely to be higher than that noted in their study[49,50].

Table 1

Categories of US Food and Drug Administration (FDA)-approved anti-angiogenic therapies: ligand-directed antibodies, receptor-directed antibodies, small molecule inhibitors, and immunomodulatory agents

Target of anti-angiogenic therapyLigand-directed antibodies
Treatment modalityBevacizumab, and chemotherapy or radiotherapy
Clinical results in HNSCCsNot approved by FDA in HNSCC
Clinical trial: phase III in recurrent/metastatic HNSCC (NCT00588770)
Results: significant increase in response rate/PFS[47]
Target of anti-angiogenic therapyLigand-directed antibodies combined with receptor-directed antibodies
Treatment modalityBevacizumab and erlotinib, with or without chemotherapy
Clinical results in HNSCCsClinical trial: locally advanced HNSCC (NCT00140556)[48]
Results: complete response rates were achieved in 96% of patients, and 3-year OS and PFS reached 86% and 82%, respectively[49]
Clinical trial: phase I/II in recurrent/metastatic HNSCC (NCT00055913)
Results: combinations predispose to higher response[49,50]
Target of anti-angiogenic therapyReceptor-directed antibodies combined with immune checkpoint inhibitors
Treatment modalityRamucirumab, a monoclonal antibody targeting VEGFR2 and pembrolizumab, a monoclonal antibody, FDA-approved for treatment of HNSCC, against programmed cell death protein 1 (PD-1)Apatinib, VEGFR2 inhibitor, and camrelizumab, anti-PD-1 monoclonal antibody
Bevacizumab and
atezolizumab, anti-PD-1 monoclonal antibody
Clinical results in HNSCCsClinical trial: one ongoing phase I/II in patients with recurrent/metastatic HNSCC (NCT03650764)
Results: pending
Clinical trial: phase II in locally advanced resectable oral squamous cell carcinoma (OSCC) (NCT04393506)
Results: major pathological response (MPR), defined as ≤ 10% residual viable tumor cells, in 40% of patients and 18-month locoregional recurrence and survival rates of 10.5% and 95%, respectively Treatment was well-tolerated, and the safety profile was manageable, superior to prior neoadjuvant chemotherapy[54]
Clinical trial: ongoing phase II in patients with recurrent or metastatic previously treated HNSCC (NCT03818061)
Results: pending
Target of anti-angiogenic therapyTyrosine kinase inhibitors
Treatment modalitySorafenib and/or sunitinib, targeting multiple receptors involved in angiogenesis, including VEGFR
Clinical results in HNSCCsClinical trials: phase I and II in patients with recurrent or metastatic HNSCC
Results: anticancer activity remained modest in combinatorial trials, single-agent use of those TKIs was not recommended[49]
Target of anti-angiogenic therapyHistone deacetylase inhibitors (HDACi)
Treatment modalityRomidepsin - Zn-dependent histone deacetylase inhibitorVorinostat combined with chemotherapy and/or radiation therapyVorinostat combined with pembrolizumab
Clinical results in HNSCCsClinical trial: phase II in patients with HNSCC patients (NCT00084682)
Results: limited activity for the treatment of HNSCC. Objective responses were not observed, although 2 heavily pretreated patients had brief clinical disease stabilization[83]
Clinical trial: phase I trial in patients with stage III or stage IVa squamous cell cancer of the oropharynx which is either unresectable or borderline resectable (NCT01064921)
Results: non-posted
Clinical trial: phase II in patients with unresectable locally advanced (LA) oropharygeal (OP) squamous cell carcinoma (NCT01695122)
Results: valproic acid promotes radiosensitization. VPA and CRT offered high RR; however, with prohibitive toxicities, which led to early trial termination
Clinical trial: phase II in resistant refractory solid tumors (NCT00404508)
Results: a clinical benefit was observed in 12 (80%) patients: four PR, and eight SD[84]

Synergistic effects of immunotherapy and anti-angiogenic therapy

Activation of pro-angiogenic pathways, especially mediated via the VEGF-VEGF receptor 2 (VEGFR2) interaction, strongly interferes with immune cell functions, leading to multi-target deprivation of immune response. This includes inhibition of immune cell differentiation, impaired antigen presentation, T cell exhaustion, and blockade of their infiltration. Concurrently, increasing expansion of regulatory T cells (Tregs), myeloid-derived suppressor cells (MDSCs), and tumor-associated macrophages (TAMs) at the tumor site was reported[51]. Thus, new combinatorial approaches targeting tumor angiogenesis and the tumor-associated immune response were developed and implemented in clinical trials.

Regarding VEGFR-directed therapy, the synergistic effects of immunotherapy and anti-angiogenic therapy, previously reported in non-small-cell lung cancer (NSCLC), are the aim of several ongoing trials involving ramucirumab, a monoclonal antibody targeting VEGFR2[52,53]. Ramucirumab gained regulatory approval in NSCLC, gastric cancer, colorectal cancer, and hepatocellular carcinoma[16]. There is one ongoing phase I/II clinical trial (NCT03650764) investigating ramucirumab plus pembrolizumab, a monoclonal antibody, FDA-approved for the treatment of HNSCC, against programmed cell death protein 1 (PD-1), in patients with recurrent/metastatic HNSCC. While results are still pending, the investigators hypothesize that simultaneous inhibition of angiogenesis and PD-1 will be more effective than inhibition of PD-1 alone, as a similar trial in patients with previously treated advanced NSCLC, gastro-oesophageal cancer, or urothelial carcinomas showed favorable antitumor activity under a manageable safety profile[53]. Additionally, targeting VEGFR2, Ju et al. investigated the VEGFR2 inhibitor, apatinib, in combination with anti-PD-1 camrelizumab in a neoadjuvant setting for locally advanced resectable oral squamous cell carcinoma (OSCC)[54]. In their pilot study (NCT04393506), 20 patients received three cycles of apatinib plus camrelizumab before surgery, which yielded a major pathological response (MPR), defined as ≤ 10% residual viable tumor cells, in 40% of their patients and 18-month locoregional recurrence and survival rates of 10.5% (95%CI: 0%-24.3%) and 95% (95%CI: 85.4%-100.0%), respectively. In addition to pathological efficacy, the treatment was well tolerated and the safety profile was manageable, even superior, to prior neoadjuvant chemotherapy regimens, showing no neoadjuvant therapy-related adverse effects of grade 3 or above[54]. The same promising concept of combining anti-angiogenic agents with immune checkpoint inhibitors is currently followed in the ongoing phase II study ATHENA (NCT03818061), combining atezolizumab, another monoclonal PD-1-antibody, and bevacizumab in patients with recurrent or metastatic previously treated HNSCC.

Anti-angiogenic tyrosine kinase inhibitors

Other key anti-angiogenic agents studied in HNSCC are sorafenib and sunitinib, the TKIs targeting multiple receptors involved in angiogenesis, including VEGFR. In phase I and II clinical trials, sorafenib and sunitinib were generally well-tolerated and demonstrated activity in patients with recurrent or metastatic HNSCC. However, this anticancer activity remained modest in combinatorial trials, and further studies with single-agent use of those TKIs were not recommended[49].

Histone deacetylase inhibitors

Histone deacetylases (HDACs) are involved in mediating multiple biological processes, including angiogenesis via the upregulation of HIF-1α, VEGF, and CXCR4[55]. Inhibitors of HDACs were approved by the FDA regarding hematological malignancies. However, the clinical efficacy in solid tumors is still being investigated[56]. Recent proteomic studies of HDAC inhibitor-resistant and sensitive cells suggested several potential drug combinations to overcome drug resistance in solid tumors[57]. Moreover, the treatment of cisplatin-resistant HNSCC cells with the class IIa HDAC inhibitor CHDI0039 resulted in promising preclinical results, unlike treatment with a class I/pan-HDAC inhibitor or combinations with bortezomib[58]. It was demonstrated in HNSCC that HDAC inhibitors inactivate ADP-ribosylation factor 1 (Arf1), which coordinates vesicle-mediated intracellular trafficking through degradation of epidermal growth factor receptor (EGFR), and thus inhibit invasion of tumor cells[59]. Clinical trials involving the use of HDAC inhibitors in HNSCC are presented in Table 1.

Resistance to anti-angiogenic therapies

One contributing factor to the limited efficacy of anti-angiogenic therapy seems to be drug resistance over time[60]. In this regard, extracellular vesicles (EVs) and the aforementioned vessel co-option have been observed to play an essential part in resistance to anti-angiogenic therapy, presumably due to their non-angiogenic nature[60,61]. EVs are naturally occurring nano-sized membrane-bound vesicles released by nearly all cell types and represent critical mediators of intercellular communication, especially between tumor and stromal cells[62-65]. A growing body of evidence suggests that tumor cell-derived EVs promote tumor angiogenesis in two ways: directly transferring bioactive cargos to ECs and exerting pro-angiogenic effects through other cells like fibroblasts and immune cells, doubling the potential for resistance[60,64,66,67]. While the exact pathophysiological mechanisms of vessel co-option are still unclear, as indicated above, studies in colorectal cancer have shown that treatment with bevacizumab can be less effective in cases where vessel co-option is present, suggesting that vessel co-option may play a role in resistance to anti-angiogenic therapy[61,68,69].

A potential method to overcome resistance to anti-angiogenic therapies is the usage of vascular disrupting agents (VDAs), such as OXi4503, combretastatin A4 phosphate (CA4P), or ombrabulin. Immature tumor vessels were shown to be more sensitive to VDAs[70]. However, the heterogeneity within the tumor microenvironment with regard to molecular and morphological differences was suspected as a major contributor to VDA treatment resistance[71]. The combination of VDAs and anti-angiogenic agents was investigated and promised to enhance the response to anti-angiogenic therapies; however, cumulative toxicities were identified as a major challenge[72-74].

Histological biomarkers for anti-angiogenic therapies

A connection between angiogenesis and HNSCC tumorigenesis, as well as metastasis, was already presented decades ago, predominantly by assessing expression levels of VEGF in tumor tissues[75,76]. However, the successful clinical implementation of anti-angiogenic therapies in HNSCC will rely on further identification of adequate diagnostic and prognostic biomarkers. Hereby, markers of the angiogenic switch in HNSCC, related to both endothelial cell and hypoxic signaling, were suggested as angiogenic biomarkers. These markers were further divided into diagnostic and prognostic biomarkers. Galectin-1, Galectin-3; p21, Cyclin D1; FGFR1, and FGFR3 were described as the most promising diagnostic biomarkers, while CD31 and CD34 are accurate indicators of MVD and D240 of lymphatic vessel density in HNSCC. LOXL-2 is a participant in ECM remodeling; VEGFR-3, CCR7, NRP1, and SEMA3E are associated with lymph node metastasis; carbonic anhydrase-9 (CA-9), HIF-1α, or HSP70 are related to hypoxia[77]. Furthermore, vascular cell adhesion molecule-1 (VCAM-1) and intercellular adhesion molecule-1 (ICAM-1) are noteworthy biomarkers, as they are both contributors to tumor angiogenesis and possess predictive value in cancer but have not been sufficiently studied in HNSCC, yet[78-80]. On the one hand, upregulation of VCAM-1 expression in the tumor periphery can generally initiate angiogenesis via very late antigen-4 (VLA-4) expressed on vascular stem cells and progenitor cells, leading to a cell-homing process to VCAM-1 in the tumor environment[81]. On the other hand, regarding VCAM-1 and ICAM-1 expression on endothelial cells of the tumor vasculature, a downregulation has been shown to play a crucial role in protecting the tumor by inhibiting leukocyte infiltration and, therefore, reducing the local immune response, which has been observed in HNSCC[82]. Interestingly, the aforementioned downregulation of VCAM-1 is directly associated with VEGF expression levels[78]. This inconsistency in expression levels of adhesion molecules, in regard to the effect it has on the tumor depending on location, highlights a site-specific interaction between the vasculature and its immediate surroundings and requires further investigation into these crosstalks in HNSCC and cancer in general[79]. Subsequently, establishing biological markers for angiogenesis in HNSCC promises to help implement tailored anti-angiogenic therapies analogous to currently widely used markers such as EGFR.


Anti-angiogenic therapies used in preclinical studies have shown to be effective in treating HNSCC, whereas, in clinical trials, challenges and limitations are frequently observed. One challenge is selecting patients who are most likely to benefit from anti-angiogenic treatments, as in certain therapy combinations, only some patients seem to derive sustained benefit and complete responses. In contrast, other patients do not benefit from anti-angiogenic therapies, but experience increased treatment-associated toxicities. Another challenge is the emergence of resistance to the selected anti-angiogenic therapies, as tumors may pursue alternative angiogenic pathways, rendering the anti-angiogenic treatments ineffective. Clearly, further studies of angiogenic mechanisms in cancer and of resistance to anti-angiogenic therapies are required to establish which, when, and in what combinations anti-angiogenic agents should be used in HNSCC. The one unmet and urgent need that could make a difference and lead to improved outcomes is the development of predictive biomarkers of response to therapy. Such biomarkers could guide selections of drugs and treatments and serve as disease-specific monitors of cancer progression. Currently, intensive efforts are invested in examining circulating tumor cells (CTC), circulating tumor DNA (ctDNA), and tumor-derived small EVs for their potential to serve as liquid tumor biopsies.


Authors’ contributions

Writing of the manuscript: Nieberle F, Spoerl S, Ludwig N

Supervision and editing of the manuscript: Głuszko A, Taxis J, Spanier G, Erber R, Spoerl S, Szczepański MJ, Beckhove P, Reichert TE, Whiteside TL, Ludwig N

Availability of data and materials

Not applicable.

Financial support and sponsorship

Szczepański MJ was supported by National Science Centre, Poland UMO-2017/26/M/NZ5/00877#. Whiteside TL was partially supported by NIH grants U01-DE029759, R01-DE031299, and R01-CA256068. Ludwig N was supported by the Walter Schulz Foundation and the Helga-Reifert-Foundation.

Conflicts of interest

All authors declared that there are no conflicts of interest.

Ethical approval and consent to participate

Not applicable.

Consent for publication

Not applicable.
